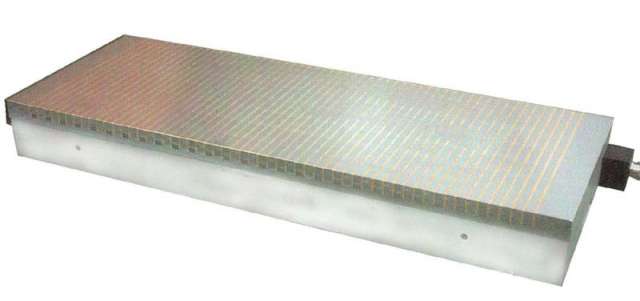

Electromagnetic chuck type ICA

    • Heavy duty construction
    • Waterproof construction

. Electromagnetic system
. Parallel transversal pole pitch throughout the whole width of the chuck
. Uniform and strong magnetic field
. Extremely stable construction
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.04.BUE.230 / 50.05.T.BUET.400 and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps



  • Use :

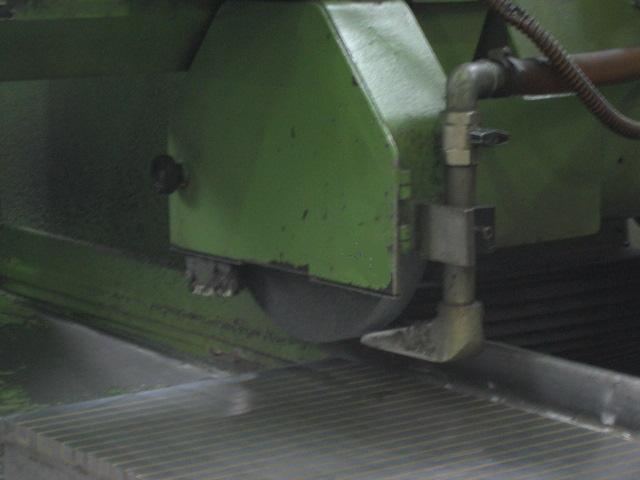

    • Grinding
    • EDM
    • Machining
  • Nominal force :
    • 120 N/cm²
  • Pole pitch :
    • 13/18/25 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5/8/10 mm
  • Voltage :
    • 110 VDC
Options :
- Other sizes on request
- Electro-permanent execution
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes

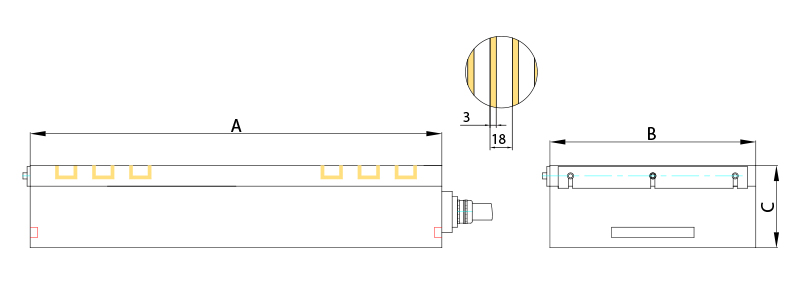

10-22-800px-5012

D = Power
Qty Product Weight in kg A B C D
10.22.30015025,03001507765W
10.22.45015030,04501507773W
10.22.40020040,040020077105W
10.22.50020050,050020077125W
10.22.60020066,060020077143W
10.22.60025075,060025077170W
10.22.800250100,080025077220W
10.22.1000250165,0100025077285W
10.22.50030075,050030077175W
10.22.60030090,060030077195W
10.22.700300110,070030077225W
10.22.900300176,090030077300W
10.22.1000300190,0100030077320W
10.22.1200300270,0120030077445W
10.22.1500300311,0150030077495W
10.22.600400120,060040080243W
10.22.800400165,080040080320W
10.22.1000400215,0100040080395W
10.22.1200400255,0120040080465W
10.22.800500195,080050090386W
10.22.1000500270,0100050090490W
10.22.1500500450,0150050090705W
