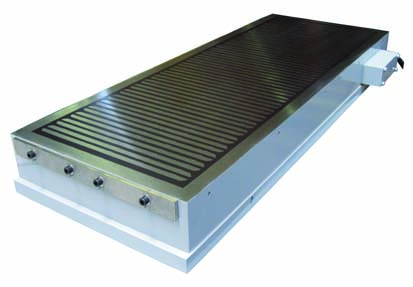

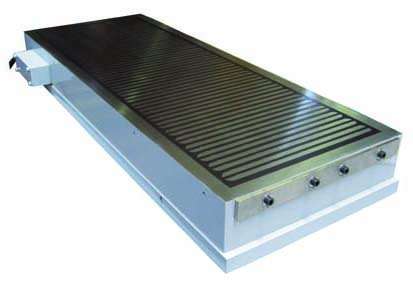

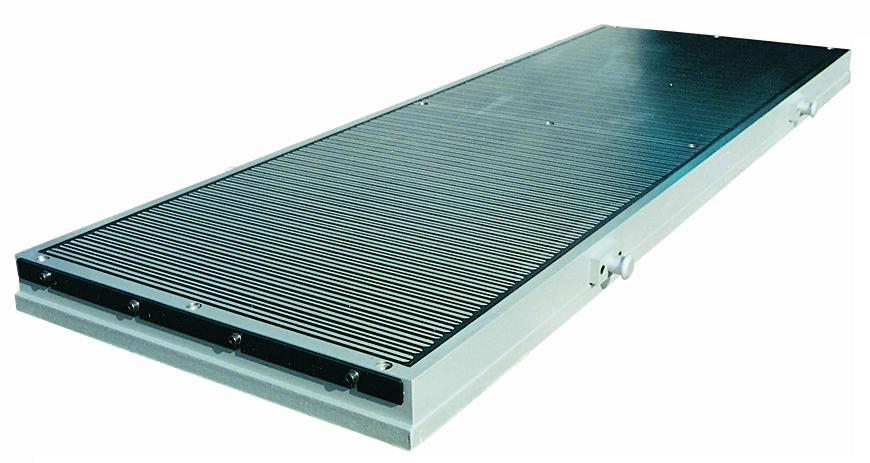

Electro-permanent magnetic chuck type POWERFINE

    • High holding power
    • Waterproof construction

. Uniform and strong magnetic field
. Pole pitch with Steel+Epoxy resin (EPTZ)

Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side

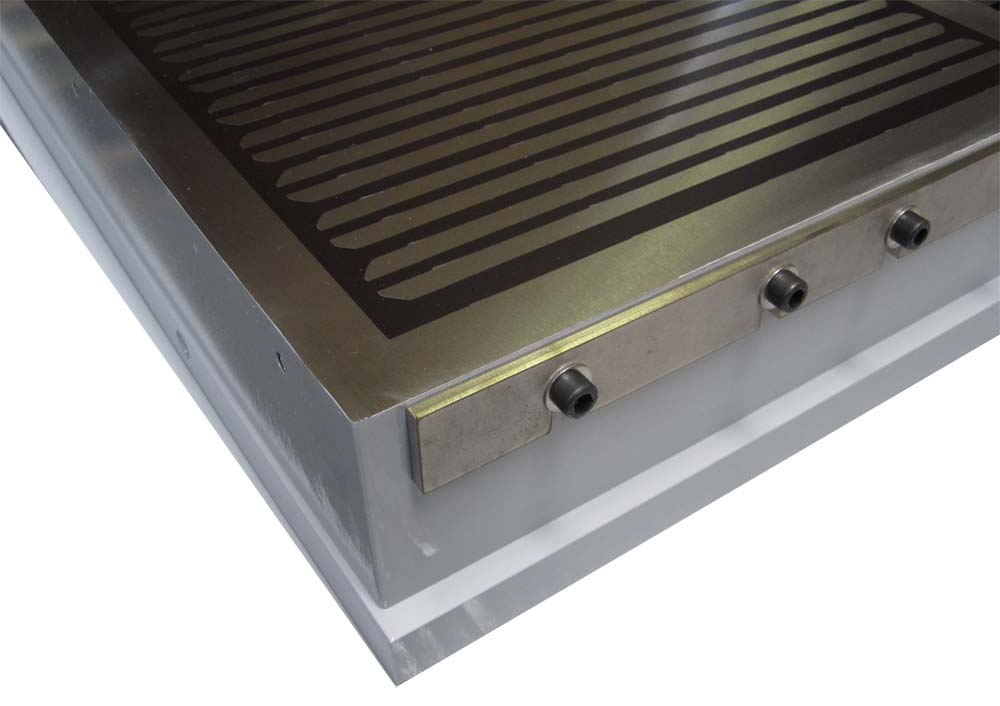

- Long and short side end stops
- Clamps
  • Use :
    • Grinding
  • Nominal force :
    • 110 N/cm²
  • Pole pitch :
    • 11 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 5 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes
10-26-11-800px-36331

Qty Product Weight in kg A B C
10.26.11.700300.34014070030091
10.26.11.700400.34019070040091
10.26.11.700500.34023570050091
10.26.11.800300.34015980030091
10.26.11.800400.34021780040091
10.26.11.800500.34026880050091
10.26.11.900300.34017890030091
10.26.11.900400.34023790040091
10.26.11.900450.34026690045091
10.26.11.900500.34029590050091
10.26.11.1000300.340197100030091
10.26.11.1000350.340230100035091
10.26.11.1000400.340271100040091
10.26.11.1000500.340334100050091
10.26.11.1200300.340236120030091
10.26.11.1200400.340313120040091
10.26.11.1200500.340391120050091
10.26.11.1500500.340486150050091
10.26.11.2000600.340773200060091
