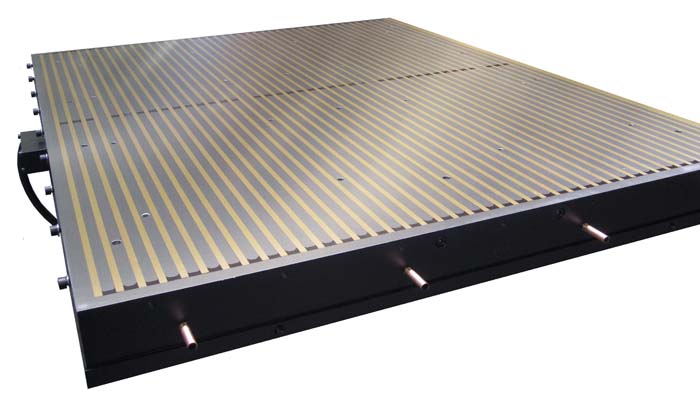

  • 10-26-ept-1826-1876

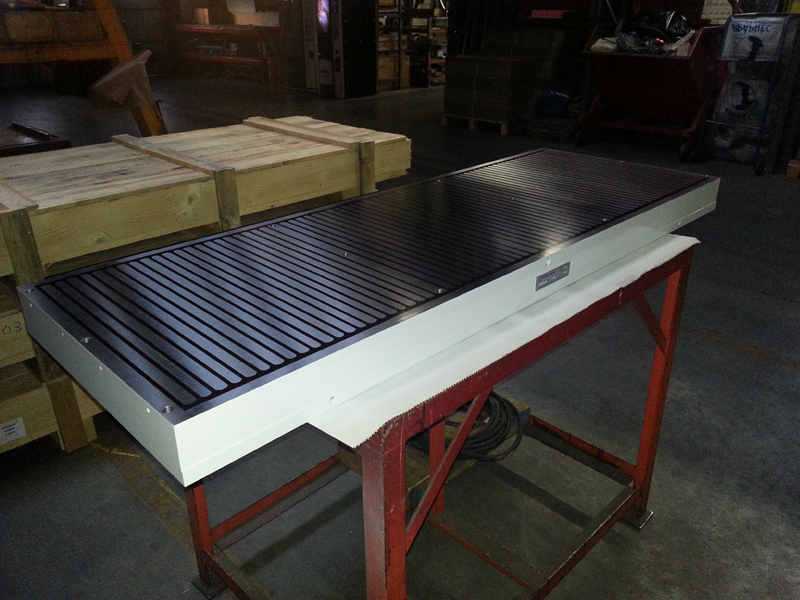

  • 10-26a-2083

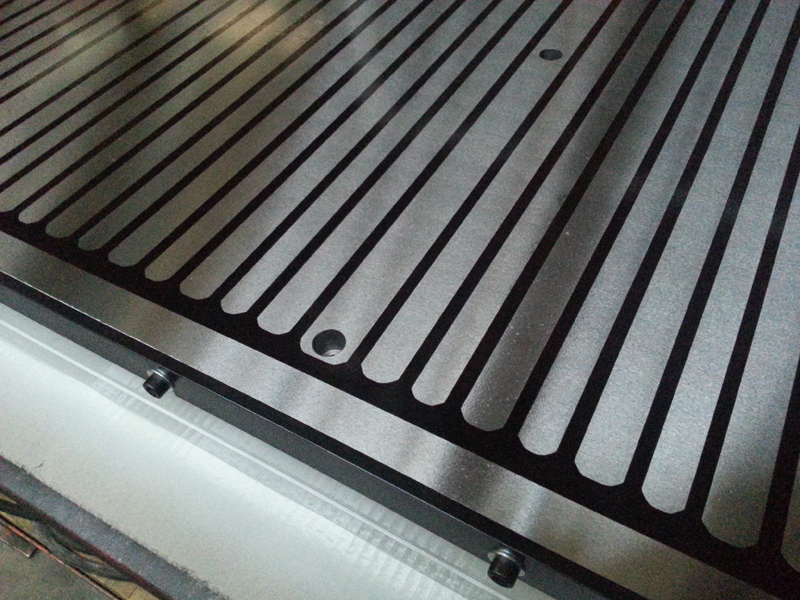

  • 10-26c-2084
10-26-ELECTRO-PERMANENT CHUCK TYPE EPT & EPTZ10-26-ept-1826-187610-26a-208310-26c-2084

Electro-permanent magnetic chuck type EPT & EPTZ

    • High holding power
    • Waterproof construction

. Uniform and strong magnetic field
. Pole pitch with Steel+Brass (EPT) or Steel+Epoxy resin (EPTZ)

Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- Long and short side end stops
- Clamps


  • Use :
    • Grinding
  • Nominal force :
    • 120 N/cm²
  • Pole pitch :
    • 21/22 mm
  • Admissible wear of top plate :
    • 8 mm
  • Magnetic field height :
    • 8 mm
  • Voltage :
    • 340 VDC
Options :
- Other sizes on request
- Through holes to fix the chuck on the machine table
- Cable connection on the long side
- Compressed air holes

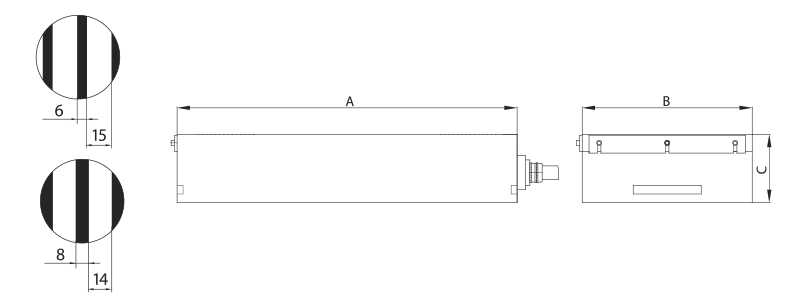

10-26-22-800px-36332

Qty Product Weight in kg A B C
10.26.22.700300.34013770030091
10.26.22.700400.34018270040091
10.26.22.700500.34022470050091
10.26.22.800300.34015680030091
10.26.22.800400.34020880040091
10.26.22.800500.34025680050091
10.26.22.900300.34017490030091
10.26.22.900400.34023190040091
10.26.22.900450.34025990045091
10.26.22.900500.34028890050091
10.26.22.1000300.340193100030091
10.26.22.1000350.340224100035091
10.26.22.1000400.340259100040091
10.26.22.1000500.340319100050091
10.26.22.1200300.340230120030091
10.26.22.1200400.340305120040091
10.26.22.1200500.340380120050091
10.26.22.1500500.340472150050091
10.26.22.2000600.340750200060091
indication_tableau_dessus
