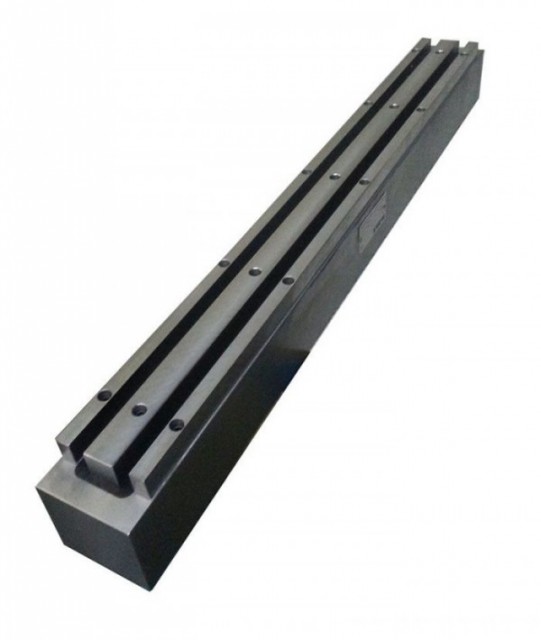

Electro-permanent Magnetic Bar type REP-R
print
REF 20.29
  • 2029-35492

Electro-permanent Magnetic Bar type REP-R

    • High holding power
    • Heavy duty construction
    • Waterproof construction
    • Long service life
    • Safe

. Suitable for round and flat material
. With NEODYMIUM (rare earth) magnets
. Pole pitch 37 mm
. Magnetic field depth: 15 mm
Included with purchase:
- 3 meter long cable
- M10 mounting holes
  • Use :
    • Positionning
    • Lifting
    • Handling
    • Assembly
    • Automation
  • Pole pitch :
    • 37 mm
  • Magnetic field height :
    • 15 mm
  • Voltage :
    • 340 VDC
Options :
- Special pole shoes adapted to lifted load geometry
- Hoisting eye

Qty Product Weight in kg A B C D
20.29.3008070.34012,13008070800 daN
20.29.4008070.34016,240080701000 daN
20.29.5008070.34020,250080701300 daN
20.29.6008070.34024,260080701600 daN
20.29.7008070.34028,370080701800 daN
20.29.8008070.34032,380080702000 daN
