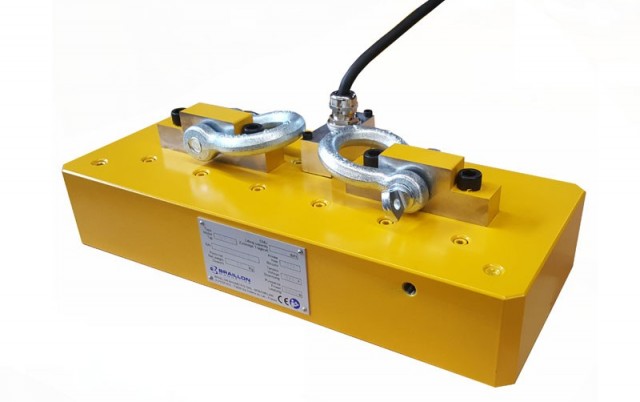

  • 20-17-id-36177

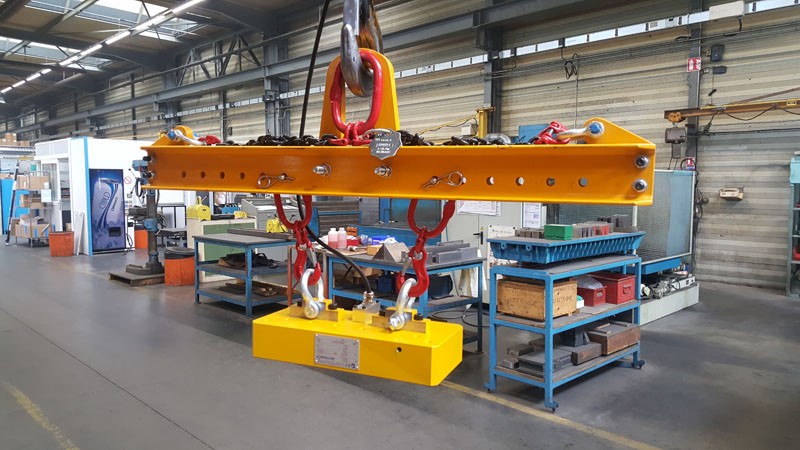

  • 20-17id2-36178
  • 20.17 Electropermanent magnetic lifter type SQUAREMAG LIFT

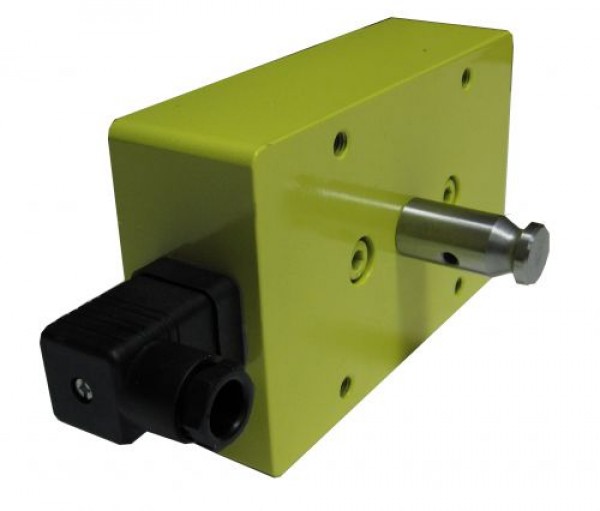

  • rob200-2-1412-35998

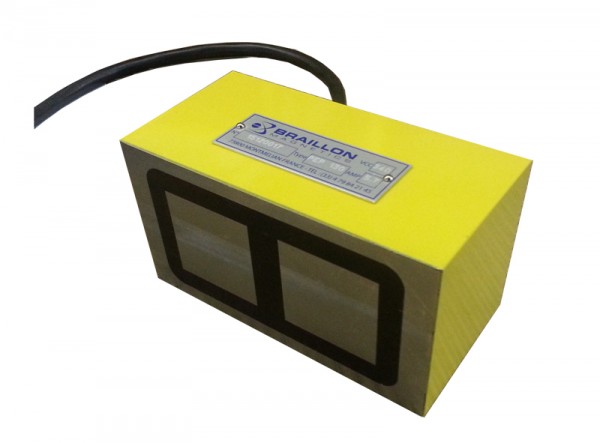

  • pep-sq50-bd-35996
20-17-id-3617720-17id2-3617820.17 Electropermanent magnetic lifter type SQUAREMAG LIFTrob200-2-1412-35998pep-sq50-bd-35996

Electro-permanent Lifting Magnet type PEP-SQ

    • High holding power
    • Safe
    • Effective
    • Heavy duty & compact construction
    • According to EN13155 standard

. For lifting of flat elements
. Very high clamping force, watertight construction
. Safety factor of 2
. Electro-permanent magnetic system with square poles
Included with purchase:
. Mounting threaded holes on the top

  • Use :
    • Lifting
    • Handling
  • Max. temperature of use :
    • 100 °C
  • Voltage :
    • 195/340 VDC
  • Duty cycle :
    • 100 %
Options :
- Other sizes on request

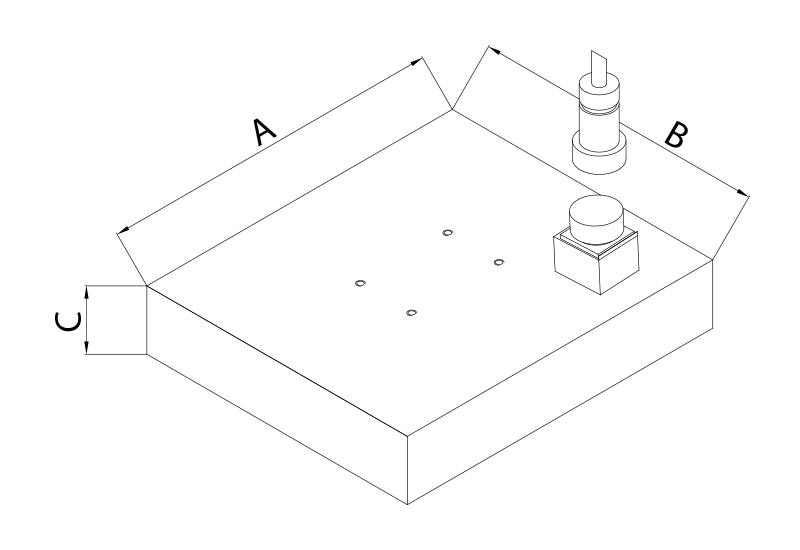

20-25-800px-5076

D = Force
Qty Product Weight in kg A B C D
20.17.18018018180180100400daN
20.17.18024024180240100600daN
20.17.240240332402401001000daN
20.17.180420471804201001250daN
20.17.240540732405401002500daN
20.17.2408101102408101004000daN
indication_tableau_dessus
