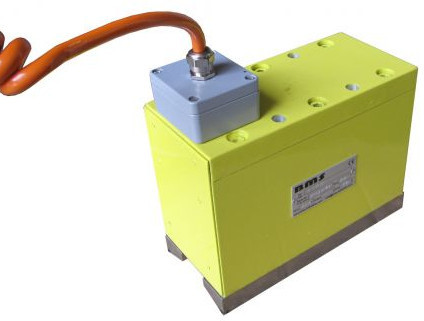

Electro-permanent Lifting Magnet for Robots

    • High holding power
    • Innovative
    • According to EN13155 standard

. Sturdy housing made of steel and aluminium
. Safety factor of 3
Included with purchase:
. Mounting threades holes on the top
. 3 meter long cable

  • Use :

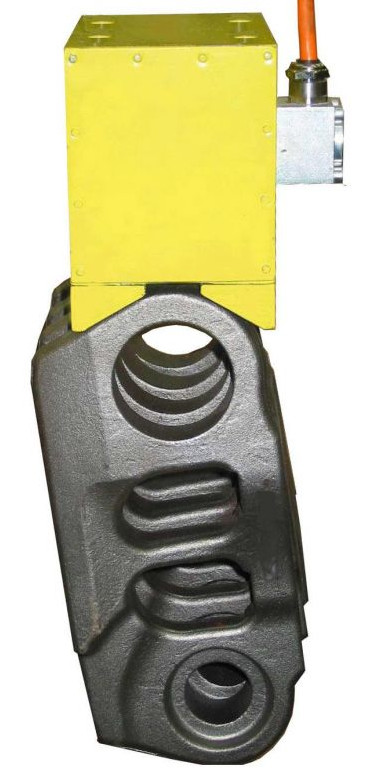

    • Handling
  • Voltage :
    • 195 VDC
  • Duty cycle :
    • 100 %
electropermanent lifter
electropermanent lifter

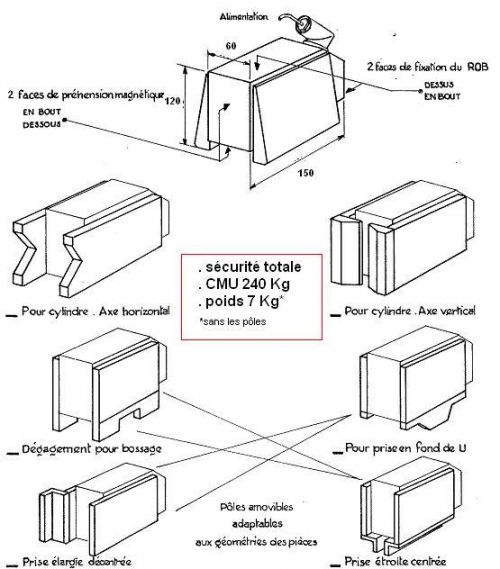

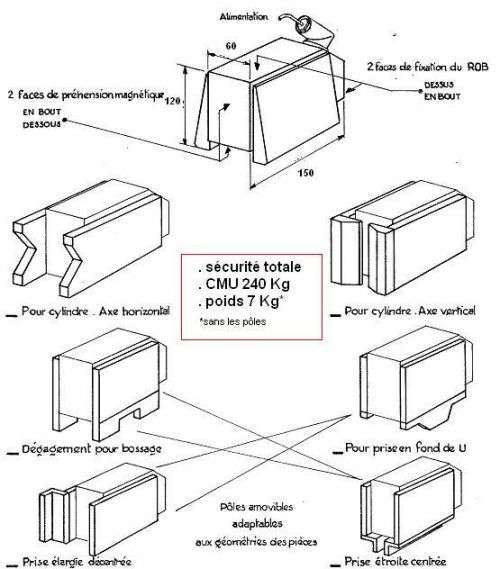

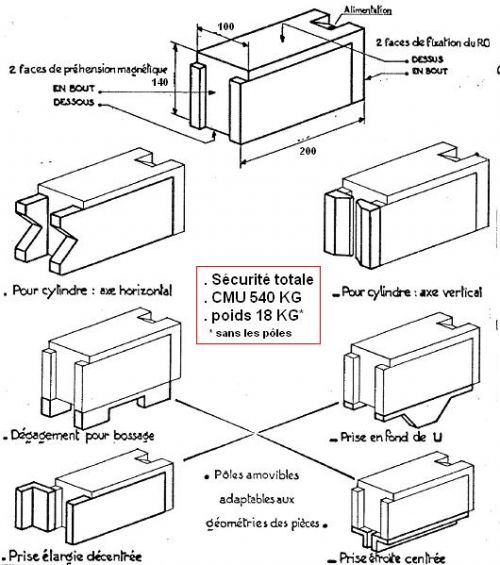

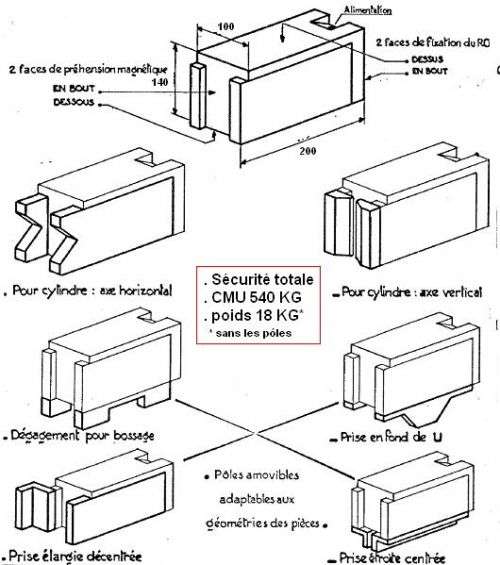

Qty Product Weight in kg A B C D E F G
20.06ROB.2507,01706014315010045250daN
20.06ROB.50018,021010014320011575500daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
