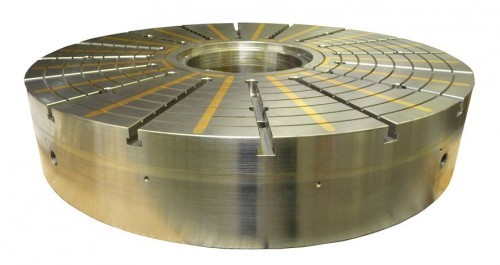

Elecropermanent Circular Magnetic Chuck type EPERC-N
print
REF 11.15
  • 11-15-epercn-35740
  • BRAILLON Elektropermanentes Rundfutter
  • BRAILLON Elektropermanentes Rundfutter
  • logo-large-35701
11-15-epercn-35740BRAILLON Elektropermanentes RundfutterBRAILLON Elektropermanentes Rundfutterlogo-large-35701

Elecropermanent Circular Magnetic Chuck type EPERC-N

    • High holding power
    • Heavy duty construction
    • Recommended for hard turning
    • Innovative

. Electropermanent radial pole circular chuck with reinforced holding force
. Space between the poles filled with brass
. For ring-shaped workpieces
. Suitable for grinding and turning operations
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.03.BUP.230/400 and 50.10.T10
Included with purchase:
- Electric connection at the rear of the chuck
- With slip ring assembly either integrated into the chuck or separate (to be fitted to the machine spindle)
  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 140 N/cm²
  • Admissible wear of top plate :
    • 8 mm
  • Voltage :
    • 340 VDC
11-15-800px-36337

Qty Product Weight in kg A B C D E F G H I
11.15.200.8.34024,0200100---4xM104458
11.15.250.8.34039,0250100---4xM124658
11.15.300.12.34054,0300100---4xM1248512
11.15.400.12.34085,0400100---6xM12510012
11.15.500.16.340150,0500110---6xM12515016
11.15.600.16.340210,0600110---6xM16518016
11.15.700.16.340280,0700110---6xM16520016
11.15.800.24.340380,0800110---6xM16520024
11.15.1000.24.340680,01000125---8xM16525024
indication_tableau_dessus
