Cylindrical permanent magnet neodymium type AN 01
print
REF 81.01
  • aimant neodyme
  • 81-01
aimant neodyme81-01

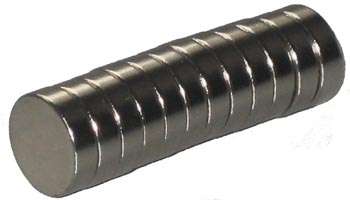

Cylindrical permanent magnet neodymium type AN 01

    • Neodynium magnet
    • High holding power

The Neodymium (rare earth) magnet (also known as NdFeB, NIB or Neo magnet) they are sintered magnets composed of NdFeB powder. A Surface treatment is necessary for corrosion protection (Zinc-Nickel-Or-Epoxy). The Neodymium Fer Bore magnets have a very high magnetic strength and a high resistance to demagnetization. They are fragile ceramics and its strength is highest when the magnet is in contact with a mild steel, that is clean and thick enough. The strength is reduced when in contact with alloy steels (cast Iron -30%), due to air-gap or a high temperature (-0.11% per degree C). Neodymium magnets are not machinable, they can not be cut or drilled. and mounting is done with glue. Magnetized depending on thickness.
  • Use :
    • Relay
    • Sensor
    • Clamping
    • Step by step motor
  • Max. temperature of use :
    • 80 °C
  • Density :
    • 7.5 gr/cm³
  • Max. surface induction :
    • 5000 G
Options :
All dimensions are possible on request.
aimant neodyme

Qty Product Weight in kg A B C
81.01-2x20.0004221.5N
81.01-3x20.0001322.2N
81.01-4x30.00035434N
81.01-4x40.001445N
81.01-5x30.0005535N
81.01-5x50.0007557N
81.01-6x20.003626.8N
81.01-6x40.0016410N
81.01-6x6.50.001366.510N
81.01-8x30.0018312N
81.01-9x50.00249520N
81.01-9.9x3.50.00209.93.517N
81.01-10x20.001210210N
81.01-12x20.001712218N
81.01-12x60.00512639N
81.01-13.5x3.50.003813.53.528N
81.01-13.5x40.00413.5425N
81.01-14x40.004614430N
81.01-15x30.00415328N
81.01-16x50.007516535N
81.01-18x50.01018545N
81.01-20x40.009420456N
81.01-22x40.01122465N
81.01-24x40.01424490N
81.01-25x40.01525490N
81.01-25.7x70.02725.77125N
81.01-30x60.032306178N
81.01-32x50.03032570N
81.01-40x50.047405275N
81.01-50x50.073505380N
