Smooth Magnetic Circular Holder
Cylindrical flat magnet type VF 03
print
REF 90.03

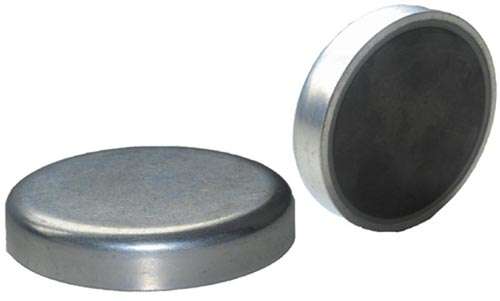

  • 90-03-496

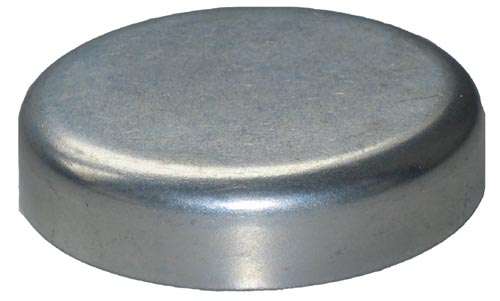

  • 90-03-1-497

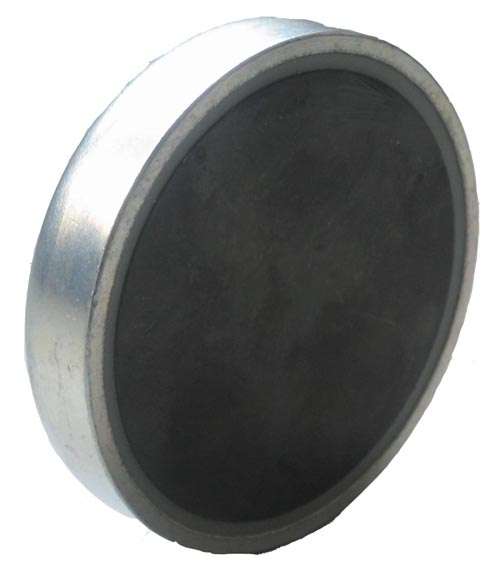

  • 90-03-2-498
90-03-49690-03-1-49790-03-2-498

Cylindrical flat magnet type VF 03

    • Ferrite magnet
    • Heavy duty construction
    • Effective

-Cylindrical magnets.
-Zinc-plated steel encloser
  • Use :
    • Mounting
    • Clamping
    • Assembly
  • Max. temperature of use :
    • 200 °C
90-03-409

Qty Product Weight in kg A B C
90.03-100.002104.54N
90.03-130.003134.510N
90.03-160.005164.518N
90.03-200.01020630N
90.03-250.01825740N
90.03-320.02932780N
90.03-360.039367.7100N
90.03-400.055408125N
90.03-470.084479180N
90.03-500.1025010220N
90.03-570.1415710.5280N
90.03-630.2266314350N
90.03-800.4688018600N
90.03-1000.91510022900N
90.03-1251.680125261300N
indication_tableau_dessus
