Compound Precision Sine Table without Magnetic Chuck type SSD
print
REF 12.04
  • 12.04-SINE TABLE TYPE SSD
  • 12-04a-i-2024
12.04-SINE TABLE TYPE SSD12-04a-i-2024

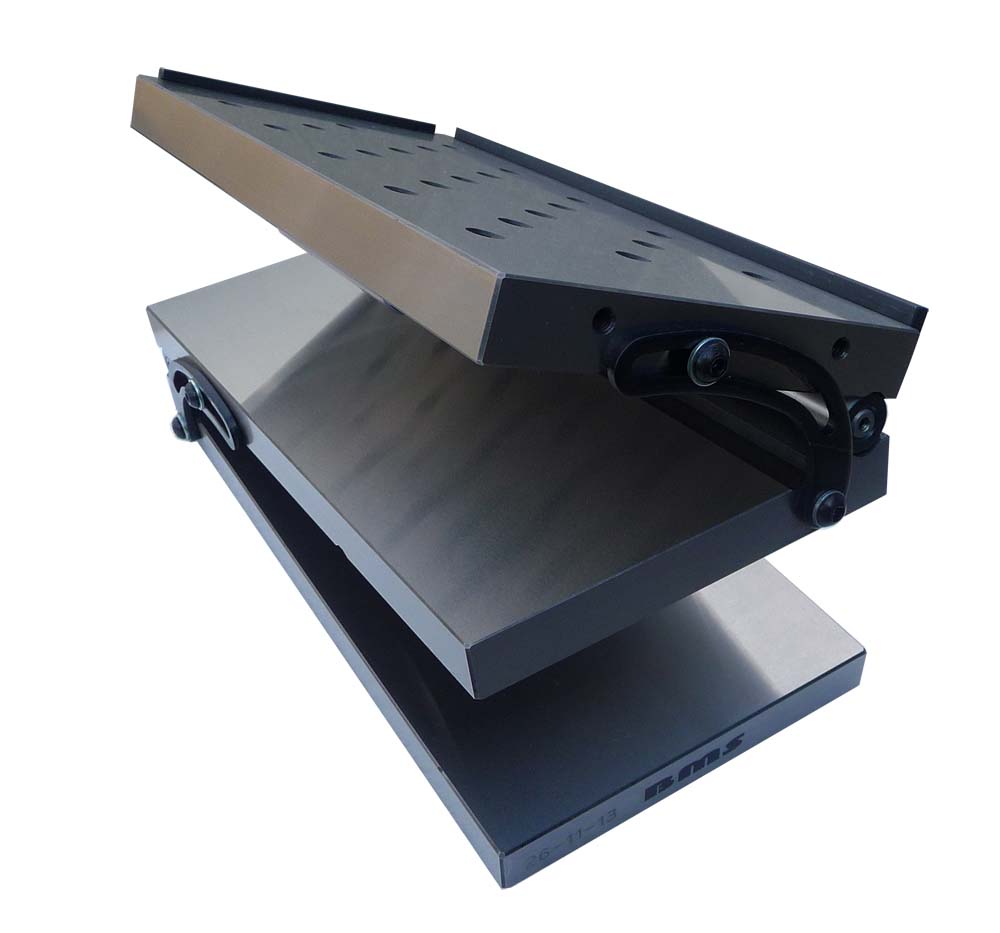

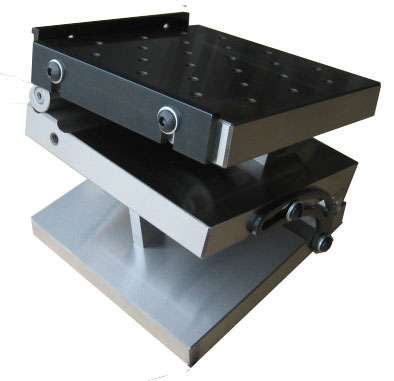

Compound Precision Sine Table without Magnetic Chuck type SSD

    • Heavy duty construction

. Precision-ground steel base body hardened to 55-58 HRC
. Swiveling on long and short axis from 0° to 60°
. Equipped with threaded holes
Included with purchase:
- Table of sines
  • Use :
    • Grinding
    • EDM
    • metrology
  • Angular accuracy :
    • ± 5 sec
  • Parallelism :
    • 0,005 / 100 mm

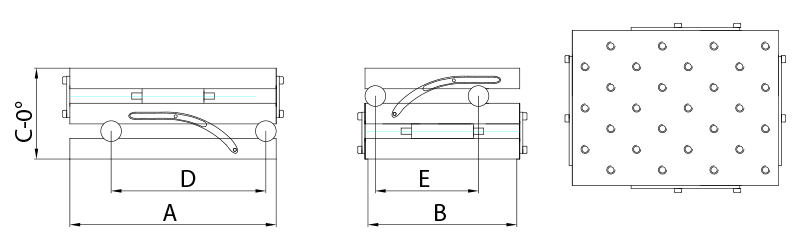

12-04-800px-5028

Qty Product Weight in kg A B C D E
12.04.1751009,717510010010075
12.04.15015012,2150150100100100
12.04.30015023,4300150100200100
indication_tableau_dessus
