REF 40.61.05
  • Circular permanent magnetic palett for spark erosion type PMC/SPARK

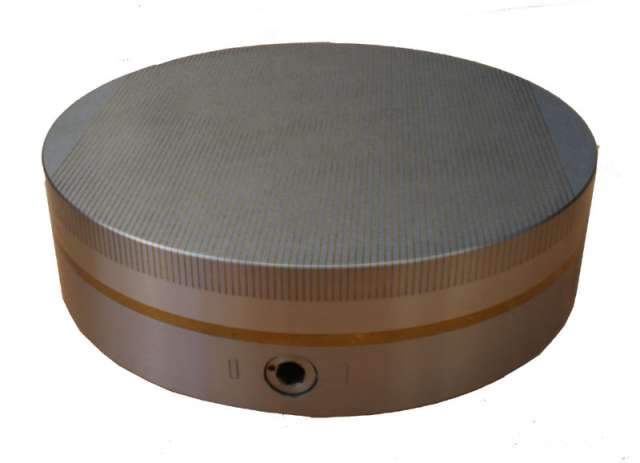

Circular permanent magnetic palett for spark erosion type PMC/SPARK

    • Fine pole pitch/ p=2 mm
    • Stabil top plate
    • Heavy duty construction
    • Power adjustable
    • Waterproof construction
    • Force: 85 N/cm²
    • Long service life
    • Low magnetic field

. Circular magnetic chuck with NEODYMIUM (rare earth) magnets
. Low magnetic field
. Fine pole pitch
. Suitable for small and thin workpieces
. Specially designed for high precision applications
. Magnetic holding power adjustable from 0 to 100%

  • Use :
    • Grinding
    • EDM
    • metrology
  • Nominal force :
    • 85 N/cm²
  • Pole pitch :
    • 2 mm
    • 0.5 mm of brass
    • 1.5 mm of steel
  • Admissible wear of top plate :
    • 5 mm
  • Magnetic field height :
    • 4 mm
Options :
All our palettes can be deliver as a simpler version (without special machining) or for a  palettizing system: EROWA-3R-HIRSCHMANN-V&B ...
Our specialists can inform you further.
Circular permanent magnetic palett for spark erosion

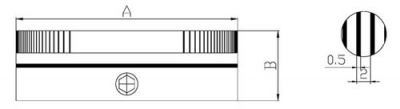

Qty Product Weight in kg A B
40.61.05.100310050
40.61.05.130613050
40.61.05.150715050
indication_tableau_dessus
