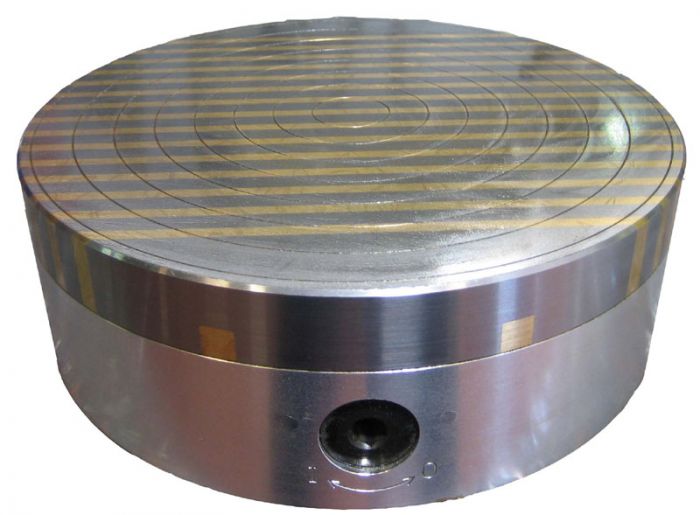

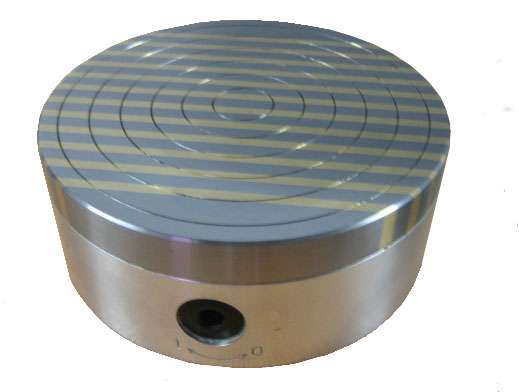

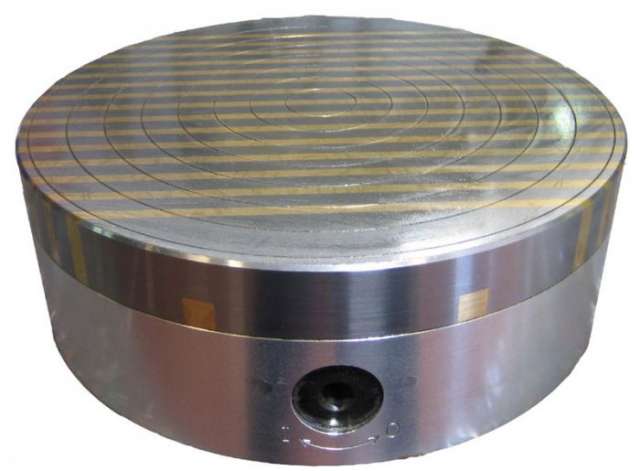

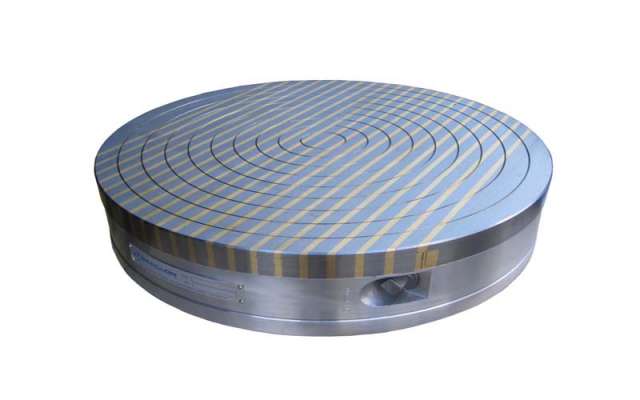

Circular Permanent Magnetic Chuck type FM

    • Twin magnetic system
    • Silver brazed top plate
    • Power adjustable
    • Force: 120 N/cm2

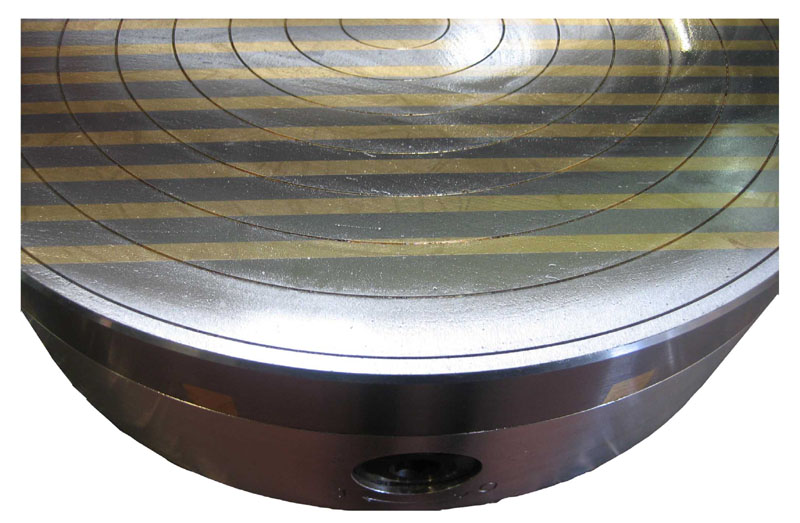

. Uniform and powerful magnetic field, ideal for turning and grinding
. Parallel pole pitch
. Adjustable holding force
. For parts 4mm thick and up
Included with purchase:
- 1 Actuating Key


  • Use :
    • Grinding
    • Turning
  • Nominal force :
    • 100 N/cm²
  • Pole pitch :
    • 13 mm
    • 5 mm of brass
    • 8 mm of steel
  • Admissible wear of top plate :
    • 5-8 mm
  • Magnetic field height :
    • 8-10 mm
Options :
Auxiliary top plate for centering
Machining possible at the rear of the chuck
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029




11-03bjpg-36253

H = Nb of keys
Qty Product Weight in kg A B C D E F G H I J
11.03.20013,0200751504.56x101824xM81148800
11.03.25020,0250802004.520x152324xM81187700
11.03.30029,0300852504.525x152854xM81226700
11.03.35040,0350853004.525x153344xM81278600
11.03.40059,0400100300530x153506xM101304500
11.03.45070,0450100350530x154006xM102356450
11.03.50090,0500100400530x154506xM102408400
