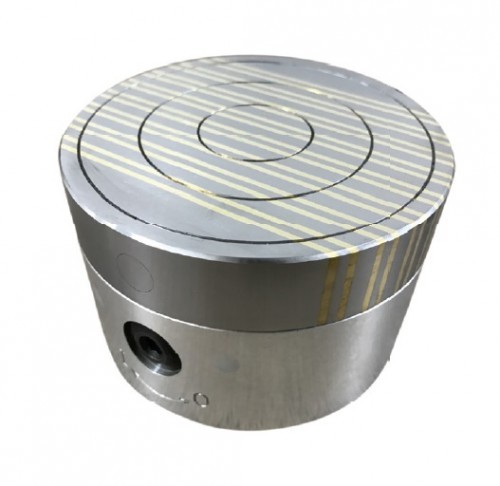

Circular Permanent Magnetic Chuck type FFM

    • Heavy duty construction
    • Waterproof construction
    • Force: 70 N/mm²

. Twin magnetic system with NEODYMIUM (rare earth) magnets
. Parallel pole pitch (Steel + Brass)
. Concentric rings for easy centering of workpieces
Included with purchase:
- 1 Actuating Key


  • Use :
    • Grinding
    • EDM
    • Turning
  • Nominal force :
    • 70 N/cm²
  • Pole pitch :
    • 9/11 mm
    • 1,5 mm of brass
    • 4/6+2 mm of steel
  • Admissible wear of top plate :
    • 5-7 mm
  • Magnetic field height :
    • 10 mm
Options :
Auxiliary top plate
Machinings possible at the rear of the chuck
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029

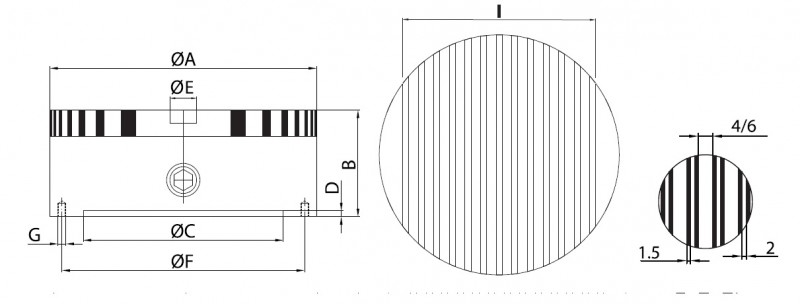

11-04a-36252

Qty Product Weight in kg A B C D E F G H I J
11.04.100310062702,5-913xM54/1,5 + 2/1,5-1500
11.04.130513062902,5-1204xM64/1,5 + 2/1,5-1200
11.04.1608160751253-1424xM86/1,5 + 2/1,5-1000
11.04.20013200801504,5-1824xM86/1,5 + 2/1,5-800
11.04.25020250802004,520x152324xM86/1,5 + 2/1,5-700
11.04.30029300852504,520x152824xM86/1,5 + 2/1,5-700
