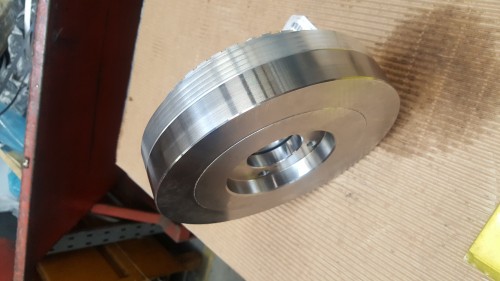

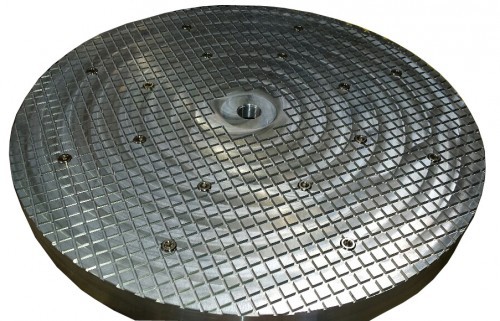

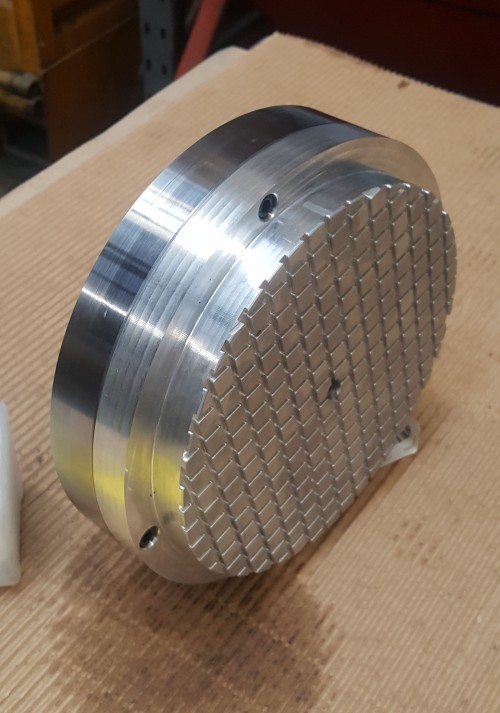

Circular Grid Type Vacuum Chuck type VRFP

    • Heavy duty construction
    • Effective

. Parallel grooves
. Vacuum intake device in the middle
. 2 different groove pitches:
VRS10AL: 10 mm pitch, execution in aluminium
VRS12AL: 12.5 mm pitch, execution in aluminium
. The required complementary equipment to be ordered, see articles: 30.11 / 30.12 /30.14 / 30.18 / 30.15
. Corresponding vacuum pump: 30.10 / 30/20
Included with purchase:
- Air hose connector


  • Use :
    • Grinding
    • Turning
  • Parallelism :
    • 0.02/100 mm
  • Flatness :
    • 0.02/100 mm
Options :
- Rotary bushing
- Another position of air connection
- Multiple independent zones
- Special execution, palletizing
- With steel base plate for use on magnetic chucks
30-06-800px-5080

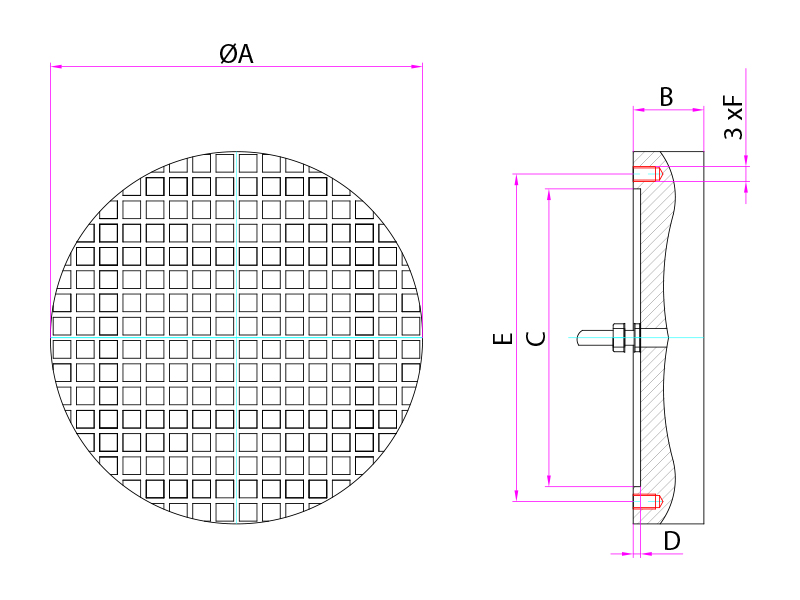

Qty Product Weight in kg A B C D E F
30.06.10011003870383M8
30.06.1251.612538954108M8
30.06.1602160381254140M10
30.06.2003200381604176M10
30.06.2505250382005224M12
30.06.3005.8300382605286M16
30.06.40016400383305362M16
30.06.50031500384205458M16
30.06.60047600385457586M16
indication_tableau_dessus
