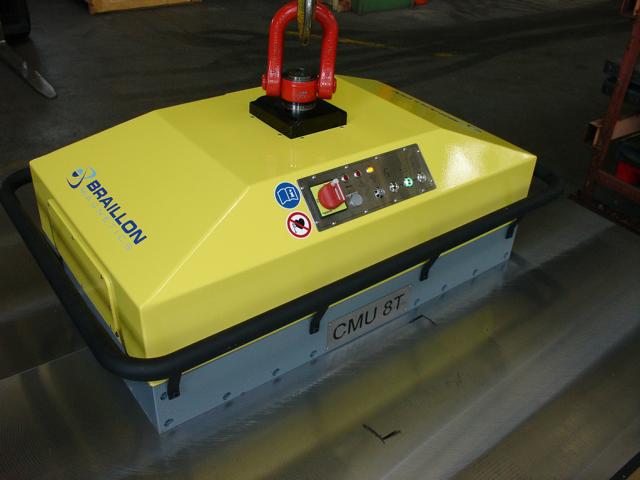

Battery-operated Electro-permanent Lifting Magnet type PEP-B

    • Heavy duty construction
    • Innovative
    • Safety factor of more than 3:1
    • According to EN13155 standard
    • According to VDE,CEE standards

. Electro-permanent system with NEODYMIUM magnets
. With safety contact to prevent from unwanted demagnetization when the magnet is still hanging on the hook
. ON/OFF switch
. Battery capacity: 8 hours

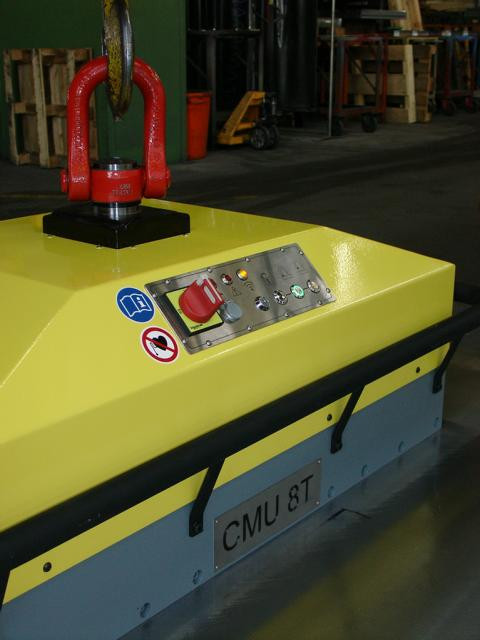

. Controlled with 3 push buttons integrated into the magnet: MAG/ DEMAG/ RELEASE

Included with purchase:
- External charger
- Radio remote control with 3 integrated buttons: MAG/ DEMAG/ RELEASE
- 4 monitoring LEDs for: MAG/ DEMAG/ BATTERY STATUS/ BATTERY LOADING
  • Use :
    • Lifting
    • Handling

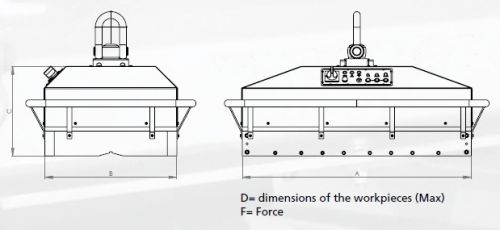

20-16-1761

Qty Product Weight in kg A B C D E F
20.16.30003205504503402500x3000x50-3000 daN
20.16.50004807804503003000x3500x60-5000 daN
20.16.80007309685586112700x4000x70-8000 daN
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
