Auxiliary Top Plate type PP/MP for Magnetic Circular Chucks type FM
print
REF 14.07
  • Auxiliary top plate type PP/MP

Auxiliary Top Plate type PP/MP for Magnetic Circular Chucks type FM

    • Heavy duty construction

. To use with circular magnetic chucks type FM
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting radial pole layout) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.

  • Use :
    • Grinding
    • Turning
  • Pole pitch :
    • 4.5 mm
    • 1.5 mm of brass
    • 3 mm of steel
Options :
- Other sizes available on request
- Other pole pitch execution
- Special machinings
- Fitting systems

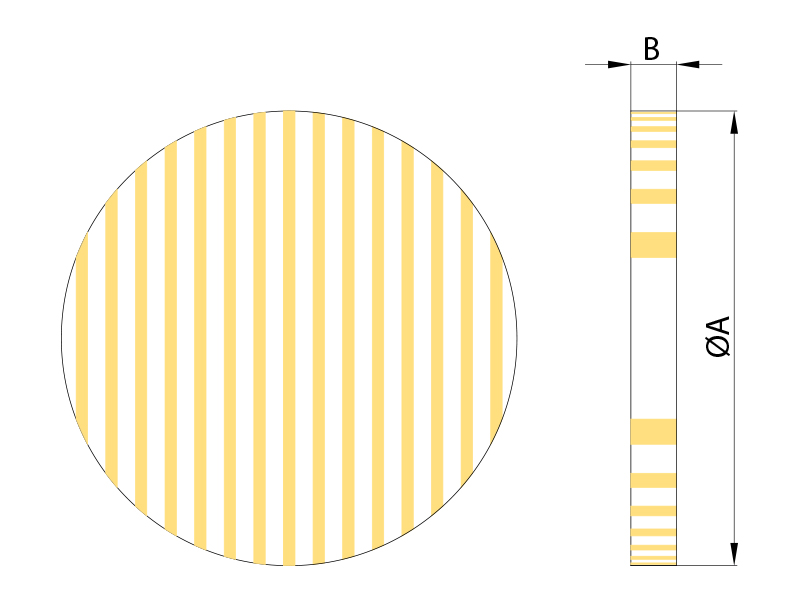

14-07-800px-5048

Qty Product Weight in kg A B
14.07.1002,610021
14.07.1303,513021
14.07.1504,215021
14.07.2005,920021
14.07.2507,625021
14.07.3008,930021
indication_tableau_dessus
To request a quote
  • Enter quantities in the table above
  • Fill in the contact form below
