Auxiliary Pole Plate type PP
print
REF 14.04
  • AUXILIARY POLE PLATE

Auxiliary Pole Plate type PP

    • Silver brazed top plate
    • Heavy duty construction

. Made of silver brazed steel and brass laminations
. Laminated blocks transmit the magnetic field of the chuck towards the workpiece. They can be used with any magnetic clamping system that has a parallel pole pitch. They can simply be placed loose on the magnetic chuck surface (respecting the radial pole layout) or can be mechanically fitted to the chuck.
. Able to withstand harsh applications because no glue or rods have been used to fix the laminations together.

  • Use :
    • Grinding
    • EDM
    • Milling
    • metrology
    • Drilling
    • Machining
  • Pole pitch :
    • 4 mm
Options :
- Other sizes available on request
- Other pole pitch execution
- With special machinings

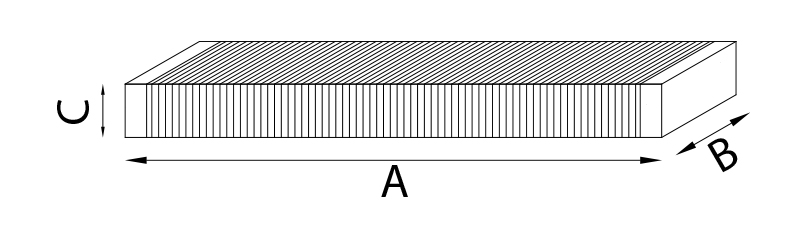

14-01-02-03-04-800px-5046

Qty Product Weight in kg A B C
14.04.250150257,425015025
14.04.300150258,730015025
14.04.3002002511,730020025
14.04.3002502514,630025025
14.04.4001502511,740015025
14.04.4002002515,640020025
14.04.4003002523,340030025
indication_tableau_dessus
