Air activated permanent magnetic holder
print
REF 20.23
  • 20-23-170-36112

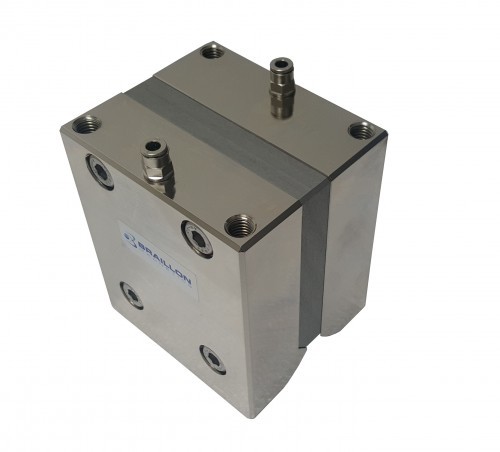

Air activated permanent magnetic holder

    • High holding power
    • Innovative
    • Heavy duty & compact construction

. Pneumatically controlled neodymium permanent magnet
. Air Pression only needed for MAG and DEMAG
. Time for MAG/ DEMAG < 1 sec
. Min thickness of piece >12mm
. Min diameter > 100mm

Note to technical sheet:
A= Lenght in mm
B= Width in mm
C= Height in mm
D= Capacity of Lifting for flat pieces
E= Capacity of Lifting for round pieces

  • Use :
    • Lifting
    • Automation

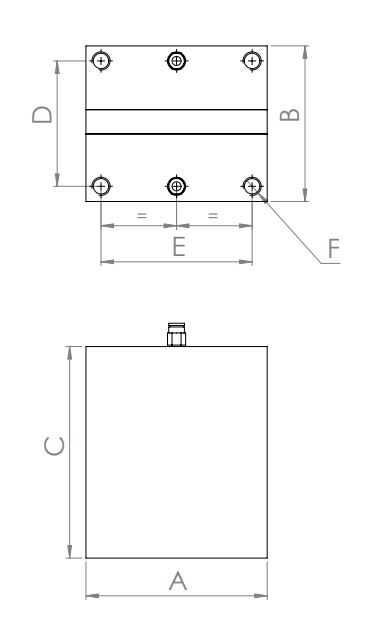

20-23-36514

Qty Product Weight in kg A B C D E F G H I J
20.23.801,9805582,542,8694xM612mm120mm46/30/1,2 daN4 mm
20.23.12011,0120101140831004xM1225mm 120mm170/120/7 daN6 mm
