HOLLOW SPINDLE STOP BAR
print
REF 40.50
  • HOLLOW SPINDLE

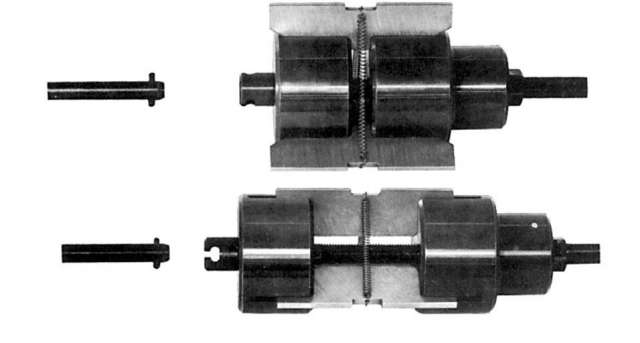

HOLLOW SPINDLE STOP BAR

    • Innovative
    • Effective
    • Heavy duty & compact construction

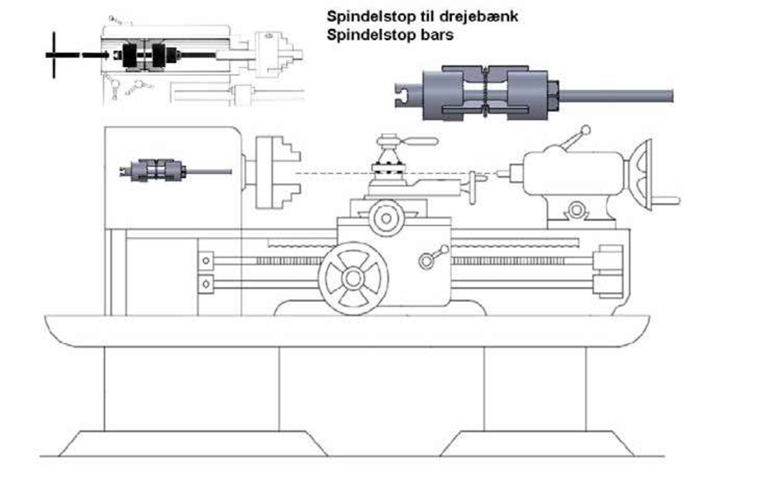

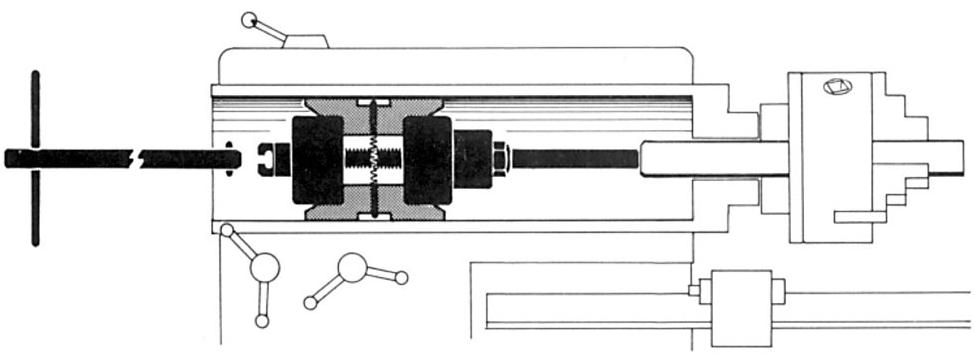

To stop pieces at the same place on turning machines.
Clamping with special key.
Simplify your life !
  • Use :
    • Turning
    • Positionning
HOLLOW SPINDLE
40-50-36596

Qty Product Weight in kg A
40.50.01dia 19-24 mm
40.50.02dia 23-28 mm
40.50.03dia 26-31 mm
40.50.04dia 30-39 mm
40.50.05dia 39-48 mm
40.50.06dia 46-64 mm
40.50.07dia 63-81 mm
40.50.08dia 70-93 mm
40.50.09dia 94-115 mm
40.50.10dia 115-135 mm
40.50.11dia 125-145 mm
40.50.12dia 145-160 mm
40.50.13dia 160-170 mm
