Electropermanent Modular Magnetic Chuck for Welding
print
REF 10.33.B
  • 10.33B-Modular magnetic chuck

Electropermanent Modular Magnetic Chuck for Welding

    • High holding power
    • Waterproof construction
    • Heavy duty & compact construction

. Double magnet system with extremely high holding force
. Powerful and uniform magnetic field
. Ideal for welding of steel sheets
. Power connection through watertight quick connector
. Corresponding Control Unit and the Remote Control to be ordered separately:
See 50.10.BUR.230/400 and 50.10.T10
Included with purchase:
- 3, 6 or 10 meter long cable (length to be chosen) on the short side
- End stops
- Clamps
- 4 fixed pole extensions, see 10.33.99.505032.F

  • Use :
    • Welding
  • Force by pole :
    • 380 daN
  • Pole pitch :
    • 50x50 mm
  • Magnetic field height :
    • 10 mm
  • Voltage :
    • 195 VDC
Options :
- Other sizes on request
- Through holes to fix the chuck on the machine table

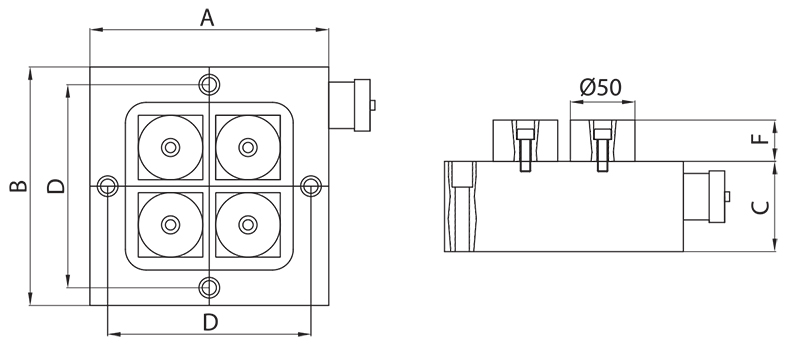

sch-10-33-b-36418

Qty Product Weight in kg A B C D E F
10.33B.170170.415,017017070157,54xM1032
indication_tableau_dessus
