Circular Permanent Magnetic Chuck type NEOGRIP
print
REF 11.06
  • 11.04 CIRCULAR PERM. MAGNETIC CHUCK TYPE NEOGRIP

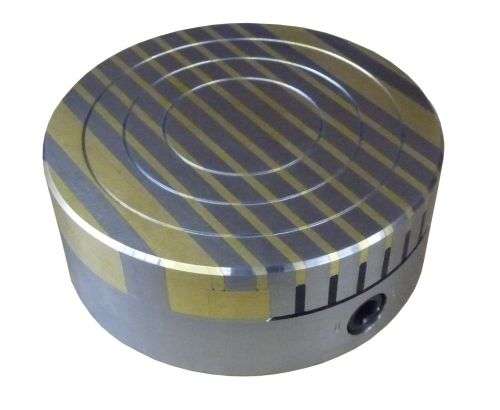

Circular Permanent Magnetic Chuck type NEOGRIP

    • Stabil top plate
    • Heavy duty construction
    • Power adjustable
    • Waterproof construction
    • Long service life
    • Low magnetic field

. Twin magnetic system with NEODYMIUM magnets
. Suitable for small, medium size and thin workpieces
. Possibility to drill 15 mm deep holes for end stops or locating pins
Inculded with purchase:
- 1 Actuating Key


  • Use :
    • Grinding
    • EDM
    • metrology
    • Drilling
    • Laser welding
  • Nominal force :
    • 80 N/cm²
  • Pole pitch :
    • 11 mm
    • 3 mm of brass
    • 8 mm of steel
  • Admissible wear of top plate :
    • 7 mm
  • Magnetic field height :
    • 4 mm
Options :
OPTIONS :
Machining possible at the rear of the chuck
Fitting adaptors to:
. Morse cone 3 or 4
. Short taper flanges for:
A2 DIN 55026
Bayonet DIN 55027
Camlock DIN 55029
11.04 CIRCULAR PERM. MAGNETIC CHUCK TYPE NEOGRIP

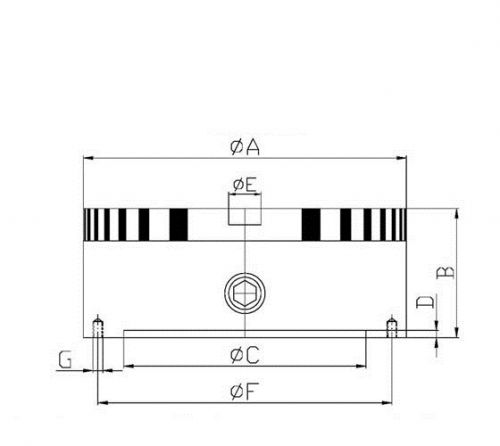

Qty Product Weight in kg A B C D E F G
11.06.10031005165322x5 / M8x12863xM6
11.06.13051305190322x5 / M8x121204xM6
11.06.150715051120322x5 / M8x121374xM6
11.06.2001220051150322x5 / M8x121824xM6
